Description
FEREI FA318M MOTORCYCLE AUXILIARY DRIVING LIGHTS
Feature

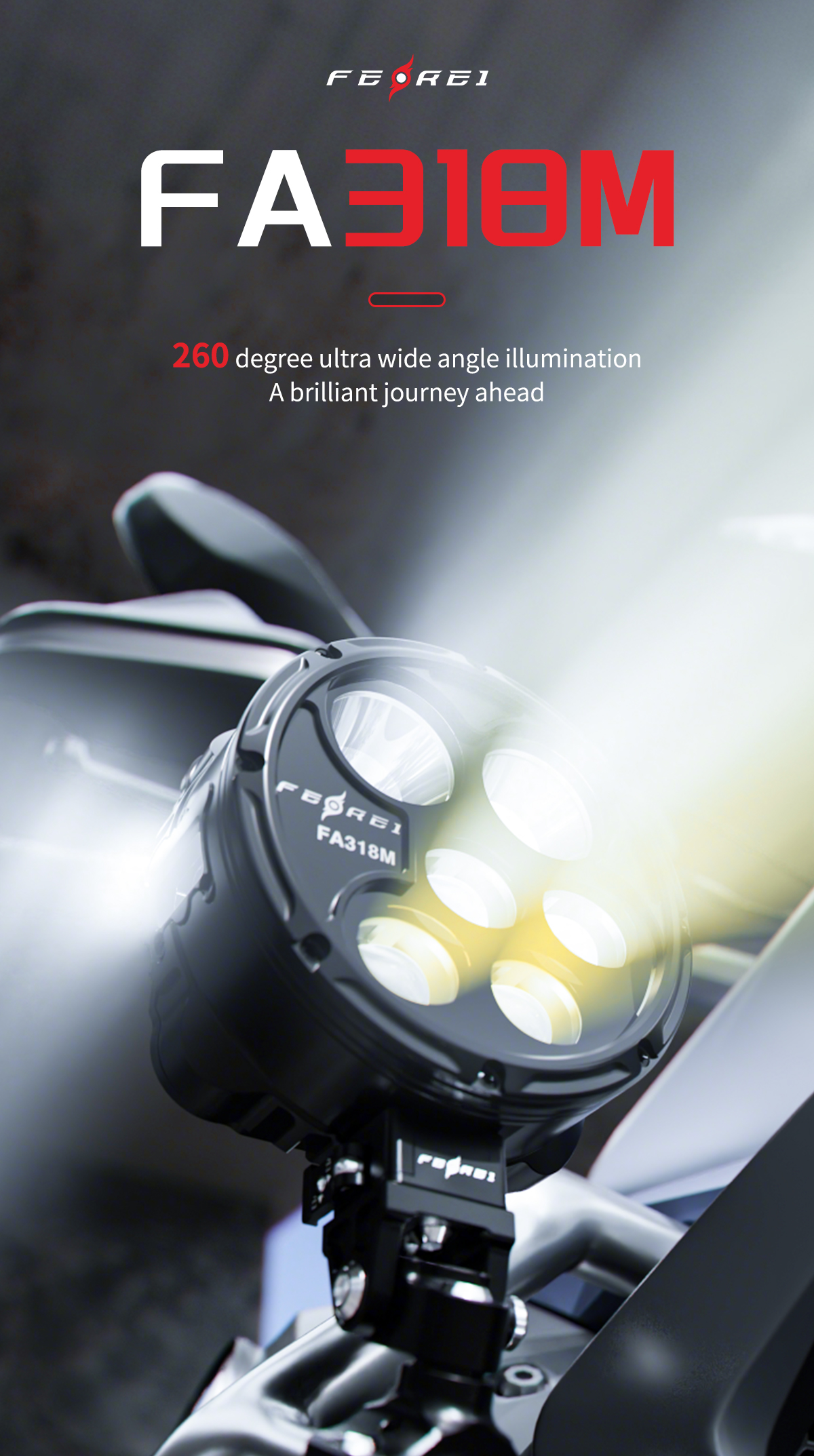

1. 260° Wide-Angle Illumination
Virtually eliminates blind spots with ultra-wide peripheral lighting coverage.
2. 12-Meter Wide side lights with 45° Side-Fill Cutoff Optics
Engineered beam pattern delivers wide road illumination while maintaining a clean cutoff to eliminates glare for oncoming traffic.

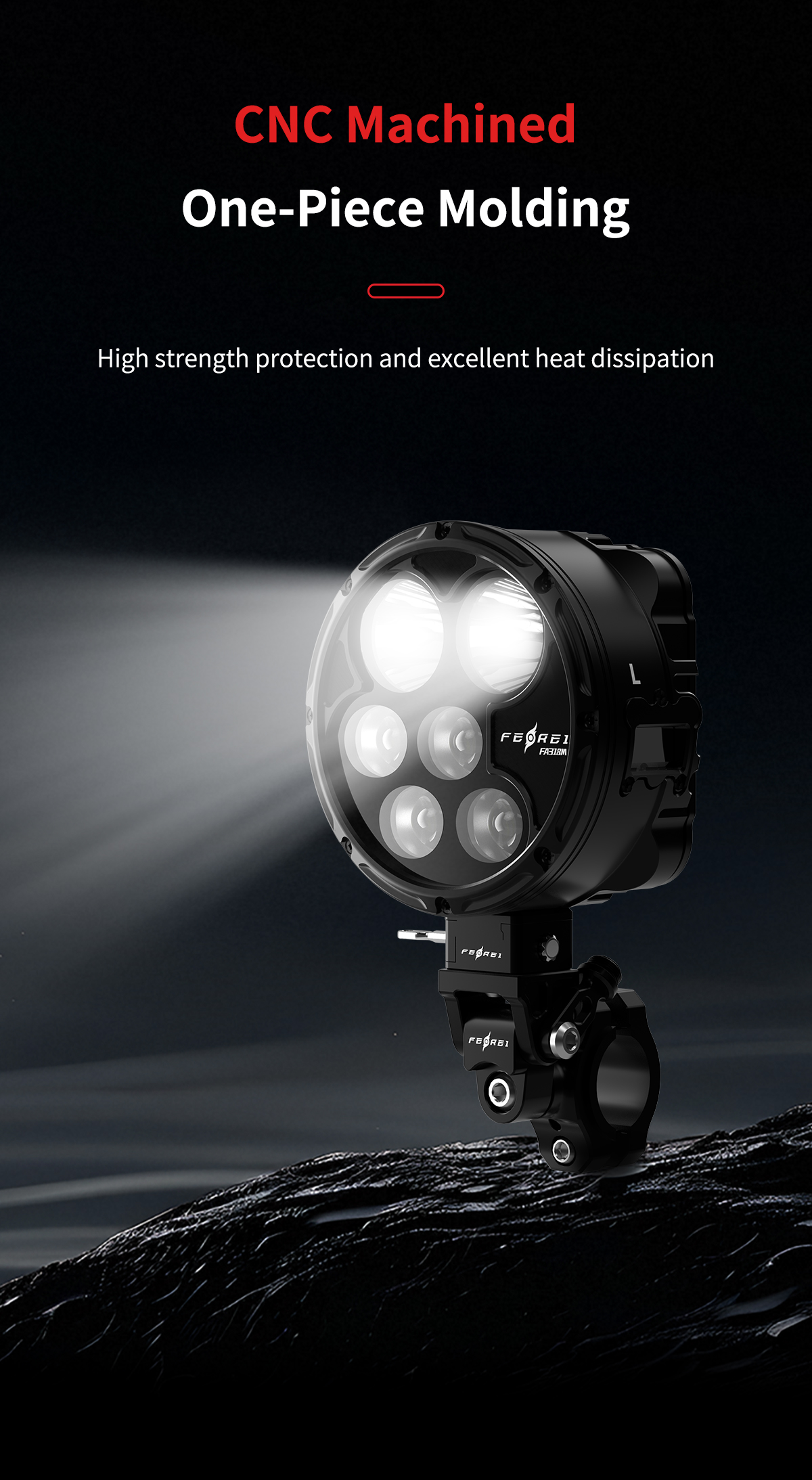

3. CNC Machined Aerospace-Grade Aluminum Housing
One-piece aviation-grade aluminum construction for maximum structural strength and superior heat dissipation.
4. IP68 Waterproof Rating
Fully sealed for extreme weather, off-road riding, river crossings, and long-distance adventure touring.
5. 6mm Diamond-Coated Tempered Glass Lens
98% light transmission with enhanced scratch resistance and high-impact durability.
6. Premium Japanese & American Electronic Components
Built with imported high-end electronic components for extended service life and higher system stability.
7. Gold-Plated Connectors
Lower electrical resistance and higher conductivity for more stable power delivery.
8. Ferei Intelligent Thermal Management System (75°C Control)
Patented smart temperature control system automatically regulates heat output to prevent overheating and maintain stable performance.

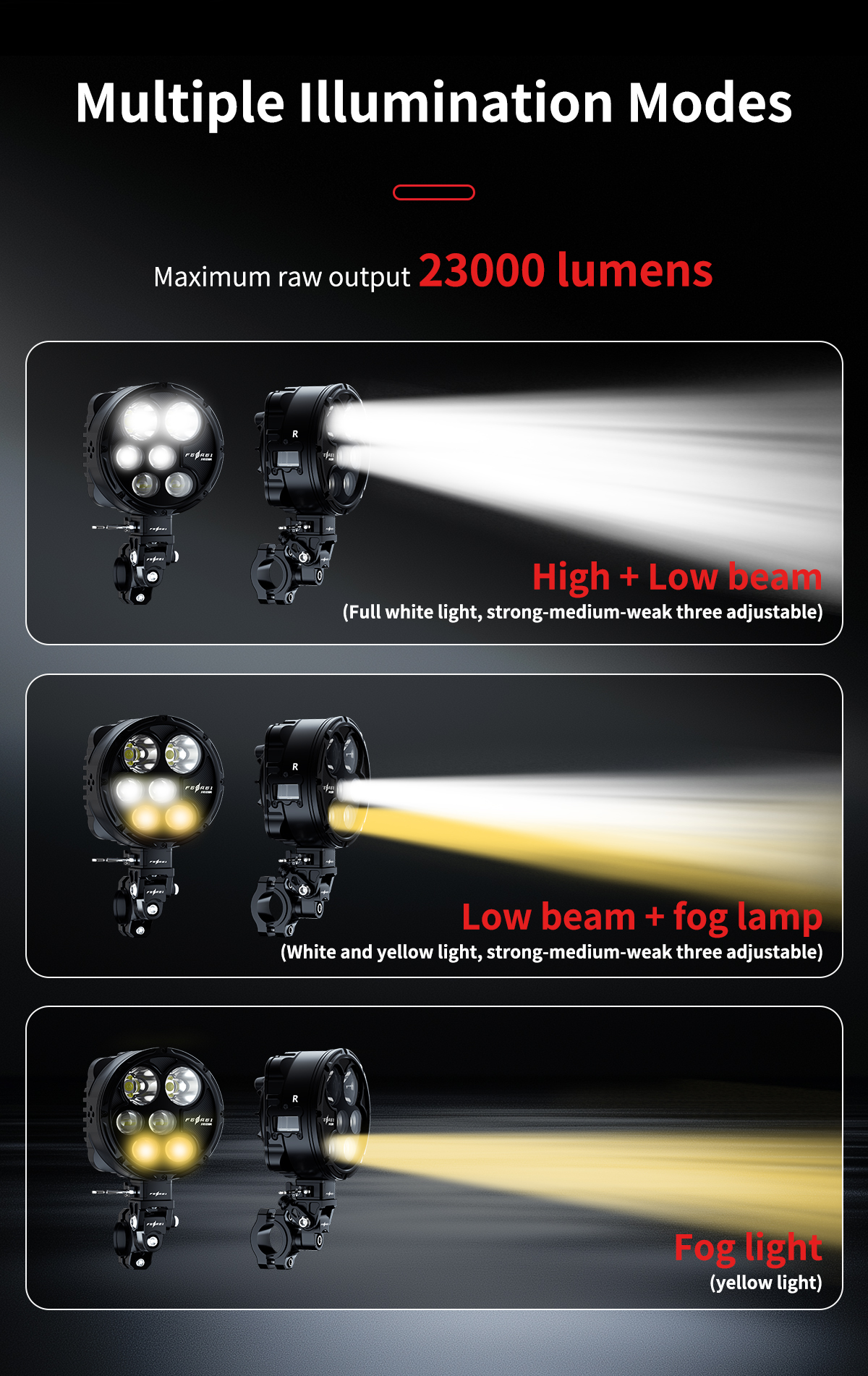

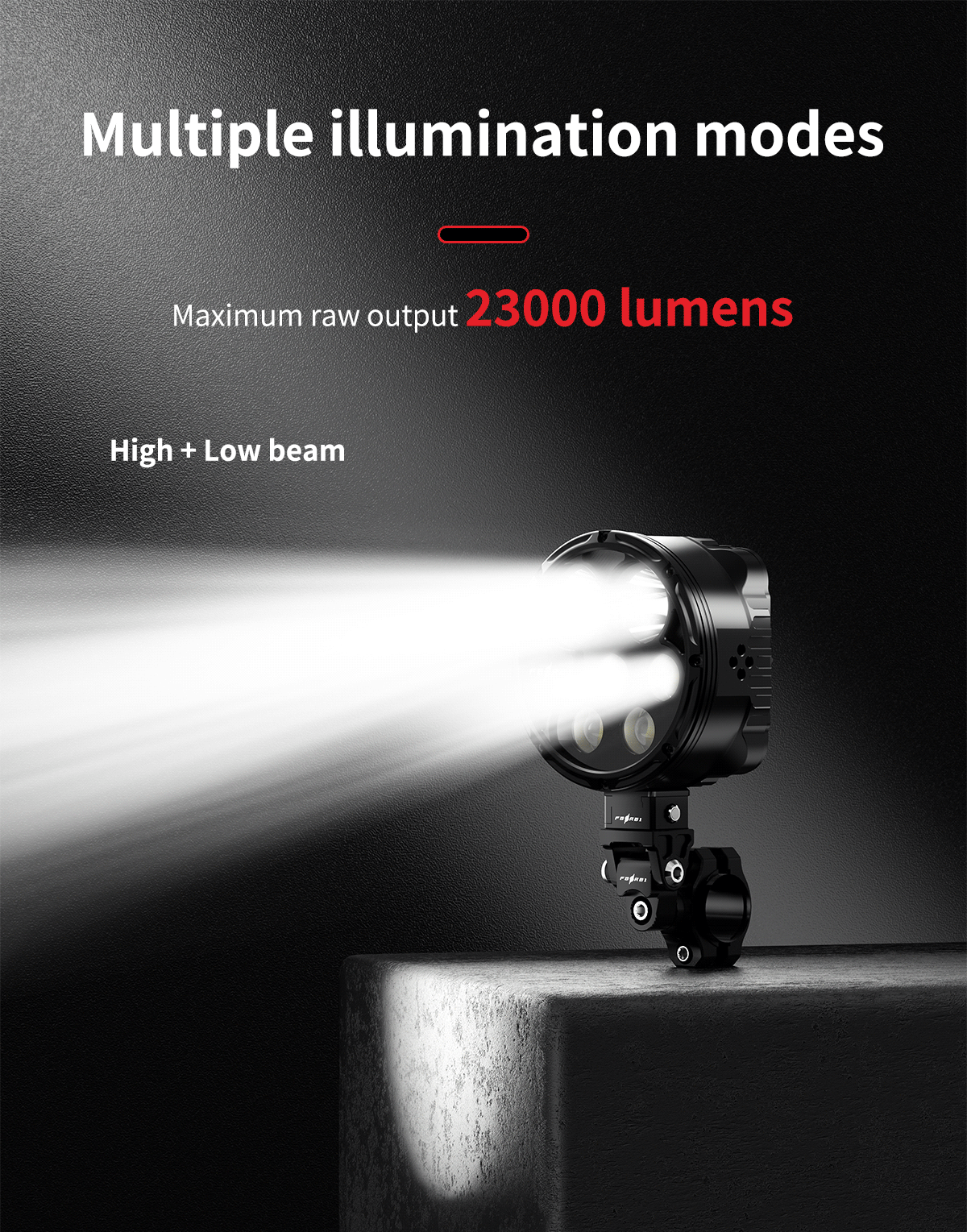

9. 23,000 Lumens Max Output
638-meter high beam distance with over 30-meter wide low beam road coverage for extreme long-range visibility and wide-area illumination.

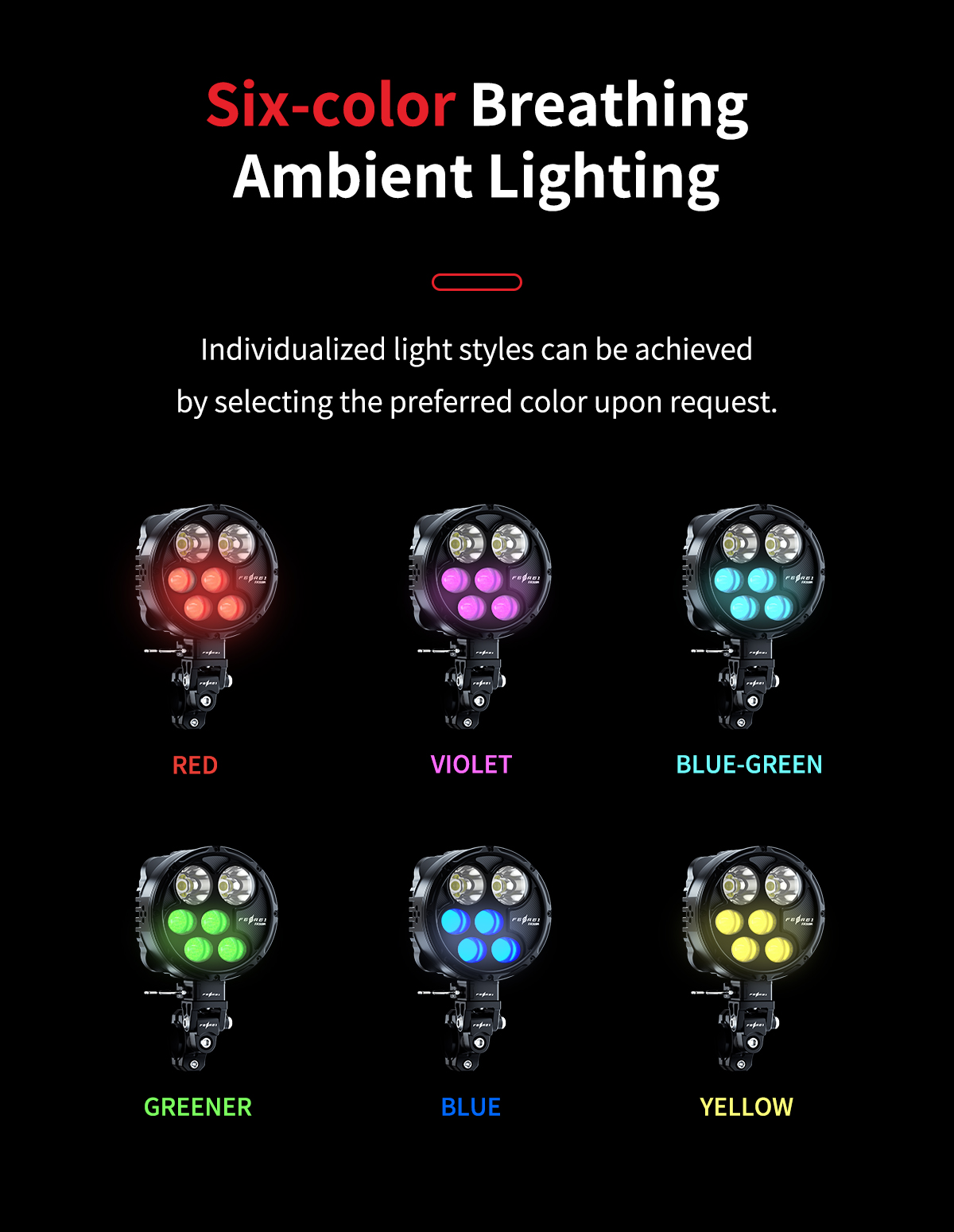

10. 7-Color RGB Ambient DRL System
Freely customizable daytime running light and ambient light combinations.

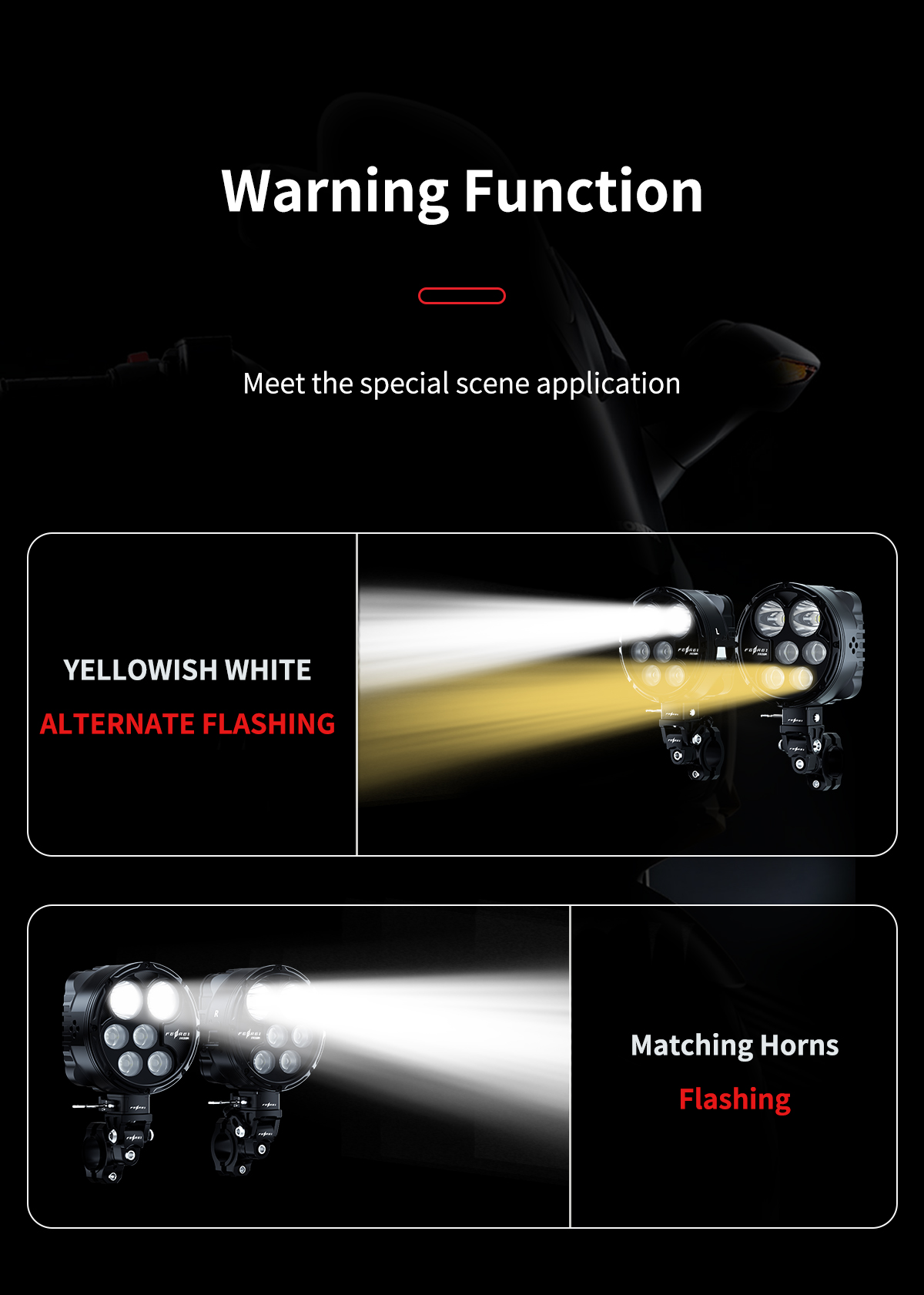

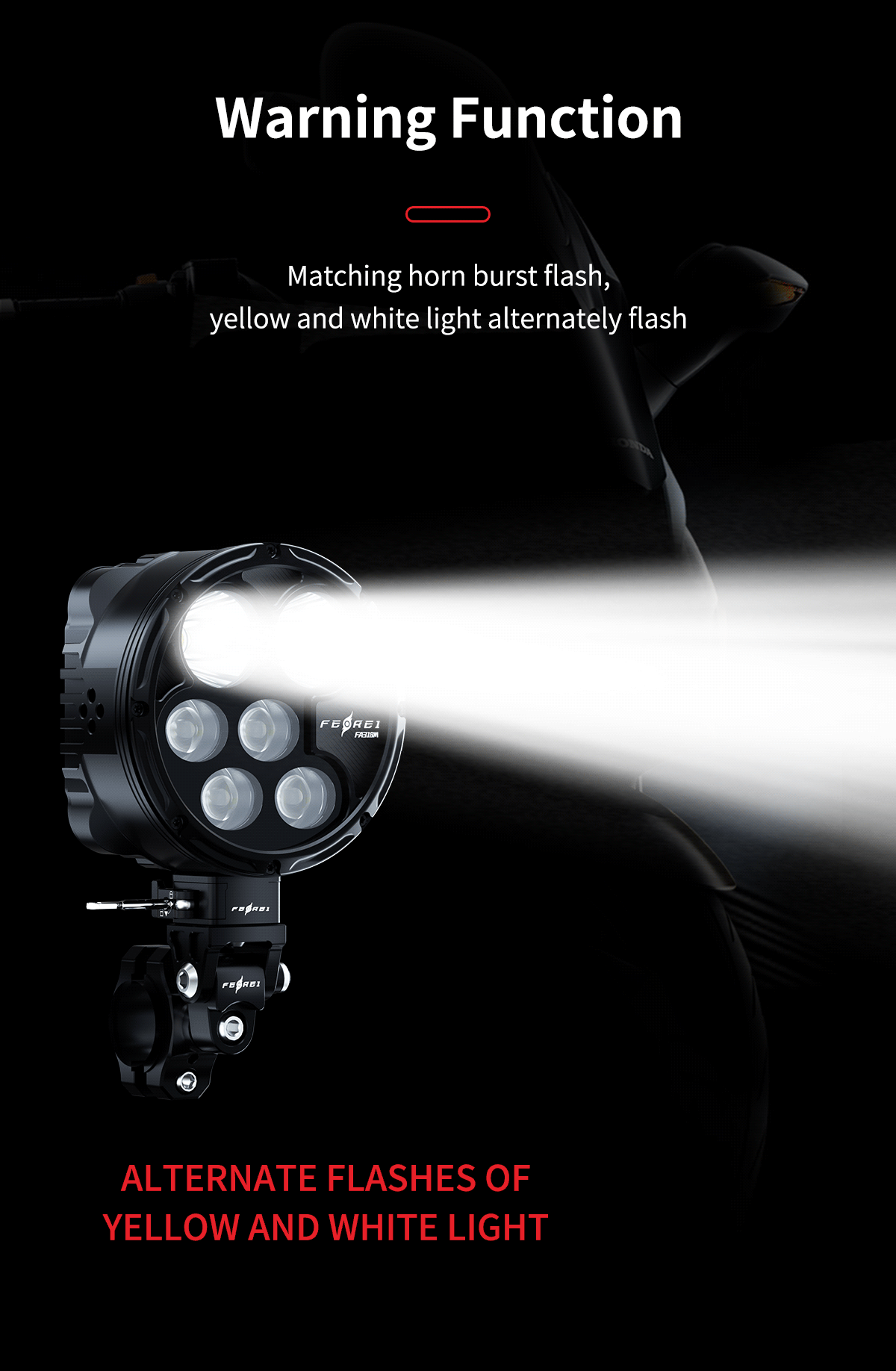

11. Horn-Activated Strobe Function
Instant high-visibility strobe mode for safer overtaking and emergency warning.

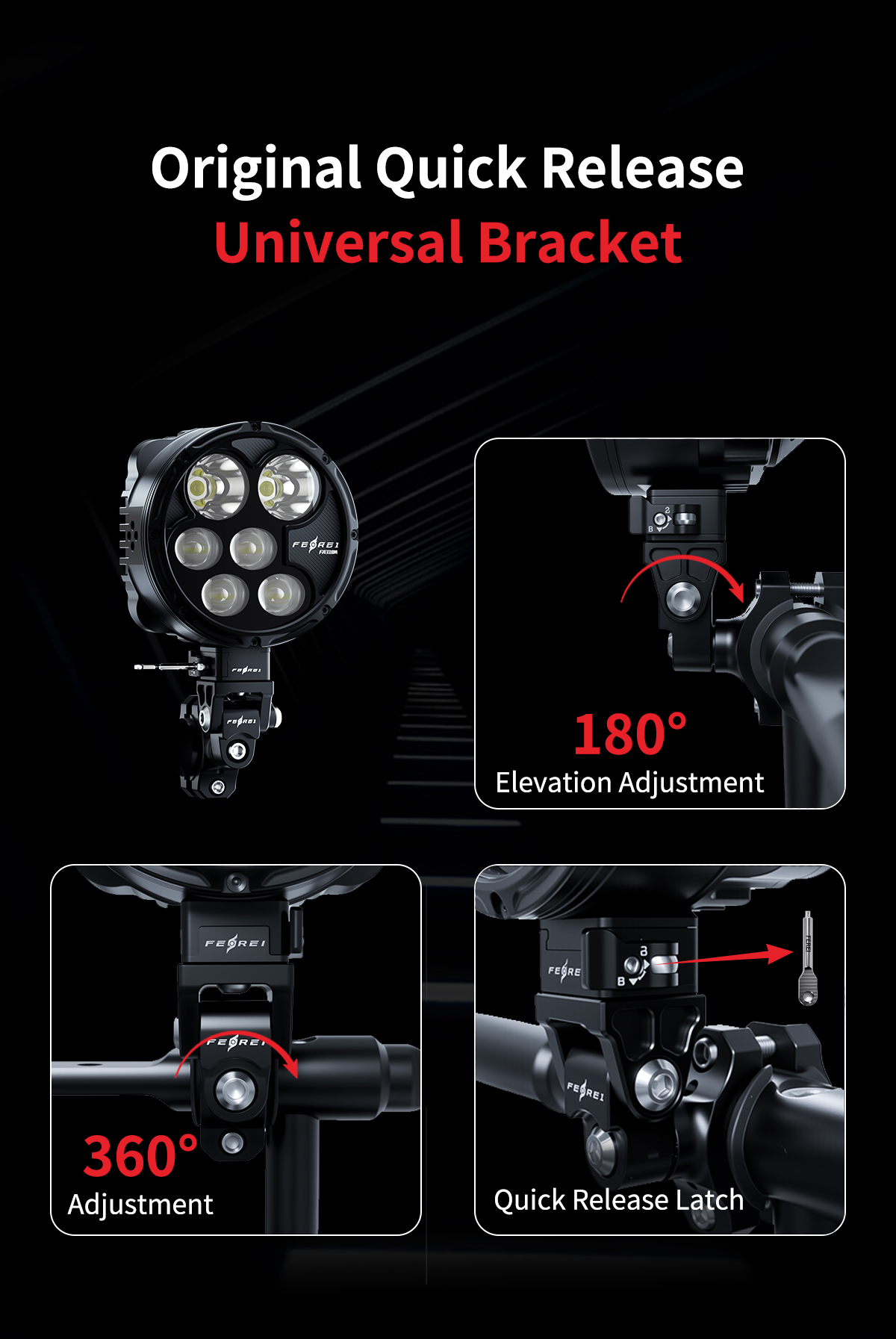

12. Anti-Theft Quick Release Mounting System
Lockable quick-release bracket design for fast installation and convenient removal.
13. Quick-Disconnect Wiring Harness
Plug-and-play connector system for easier installation and maintenance.
14. OEM Handlebar Control Compatibility
Fully compatible with BMW, Goldwing, and Harley-Davidson handlebar control systems for seamless OEM-style operation without complicated rewiring.
15. Integrated Battery Protection System
Built-in intelligent battery protection prevents excessive power drain and protects the motorcycle battery from low-voltage damage caused by high-output lighting systems.

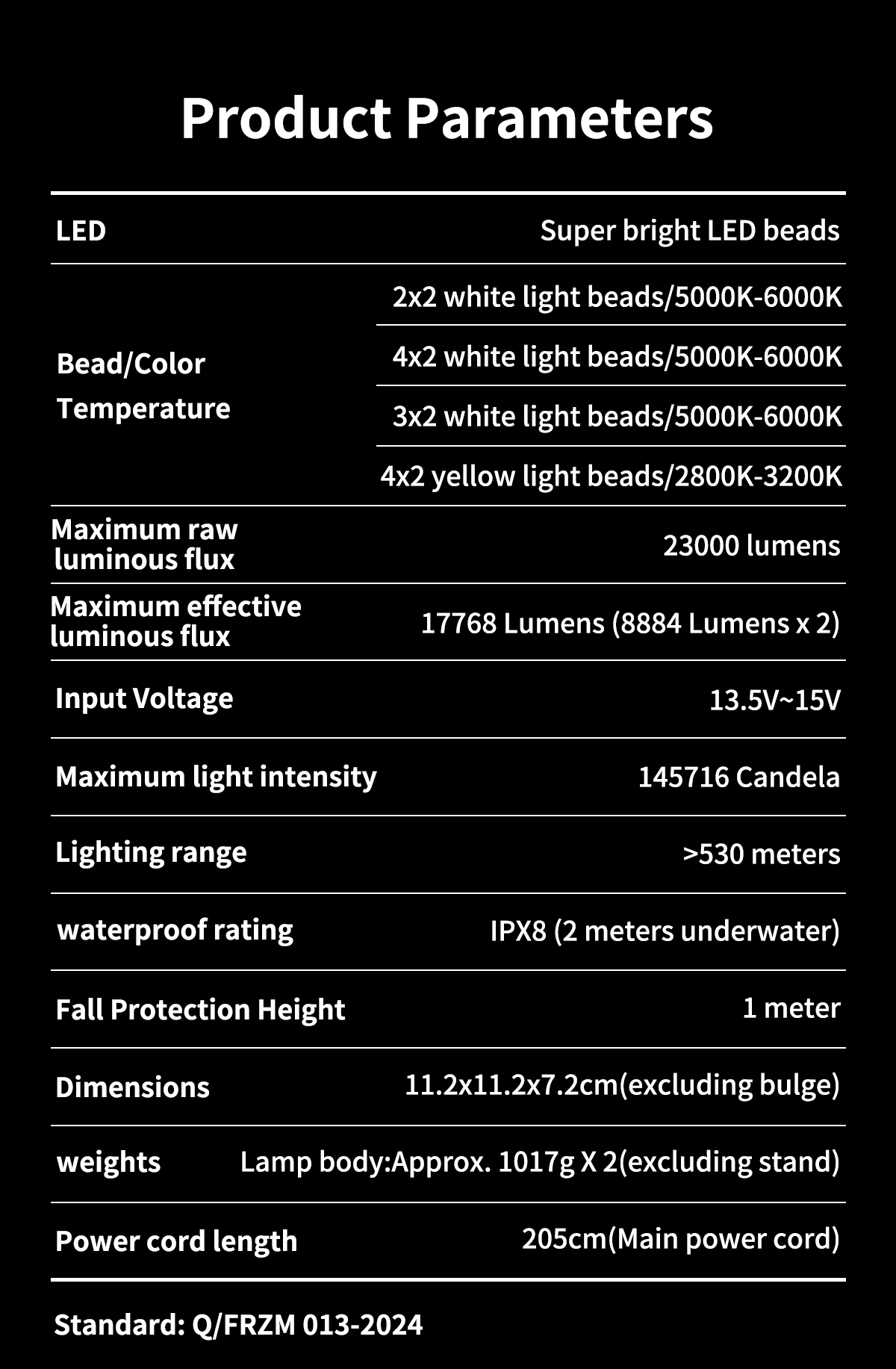

Parameters
| Model | FA318M |
|---|---|
| light source | 1) Spot beam: 2×2 white LED (5000-6000K) 2) Flood beam: 4×2 white LED (5000-6000K) 3) Flood beam: 3×2 white LED (5000-6000K) 4) Fog lights: 2×2 yellow LED (2800-3200K) |
| Luminous flux and power | 1) Maximum raw output luminous flux: 23,000 lumens 2) Maximum effective output luminous flux: 17,768 lumens (8884lmx2) |
| Power | 300W(150W*2) |
| Maximum light intensity | 72858 candela |
| Input voltage | 12V to 15V |
| Range | More than 530 meters |
| Waterproof level (body only) | IPX8 (2 meters underwater) |
| Anti-fall height | 1 meter |
| Exterior dimensions | φ12*7.4cm (light body) |
| Power cord length | 205cm |
| Product unit weight | 1000g*2 (light body) |
Warranty
A full 2-year warranty from the original purchase date is offered to the original purchaser on all FEREI lights, covering any defects in materials or workmanship.
Stated Performance Metrics: Our stated lumen output and beam distance figures are measured under standard laboratory conditions for the light unit only; excluding any losses from mounting hardware, wiring, or vehicle electrical system variance, as is industry standard. A 5% variance (lower or higher) in total light output efficiency is normal for end-user applications.
All FEREI light models must pass our harsh multi-frequency vibration and waterproof endurance tests to ensure reliability. Please see here for more details on IP ratings and usage guidelines.
Max System Voltage: Please ensure your vehicle’s operating voltage is within the light’s rated range (e.g., 12-30V DC). If the vehicle is equipped with other high-power electrical accessories or has an aging electrical system, we recommend having the installation and regular checks performed by a professional auto electrician, as this will help prolong the product’s lifespan and prevent potential issues from power instability.
We are off-road enthusiasts ourselves and understand the critical need for dependable gear. Therefore, we go above and beyond to offer excellent service should you ever experience any issues. We carry a full inventory of spares at very reasonable prices and provide complete technical support.
